The Cloud Performance Map: How Hetzner Ranks Among 5,000 Instance Types

Gergely Daroczi

2026-09-17

The Cloud Performance Map:
How Hetzner Ranks
Among 5,000 Instance Types

Gergely Daroczi, Spare Cores

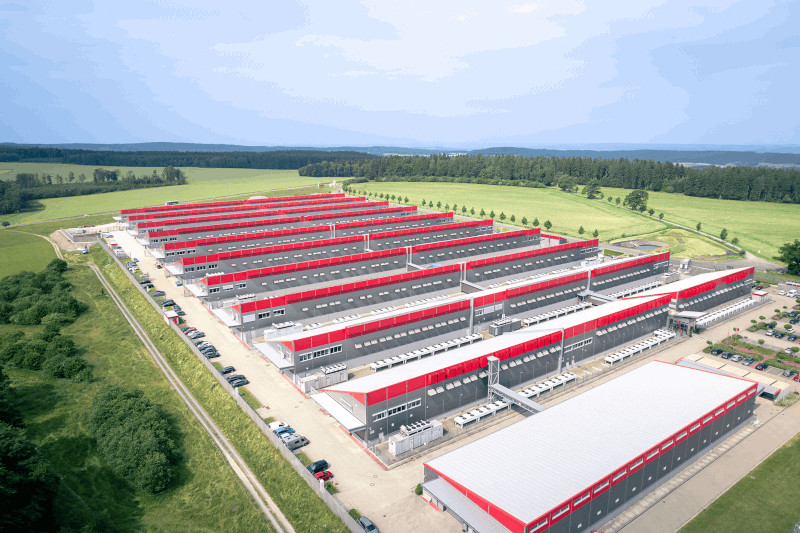

Sep 17, 2026 @ Falkenstein, Germany

Slides: sparecores.com/talks

Press Space or click the green arrow icons to navigate the slides ->

Hi, I’m Gergely Daroczi from the Spare Cores team, and we are an open-source project for cloud transparency, so we try to compare cloud resources across vendors in a standardized, objective and transparent way.

Why do we do that?

While pretty much everyone understands that cloud is still just another computer, at a remote location, that I can spin up quickly and throw away as needed, BUT we often don’t really know what kind of computer that is.

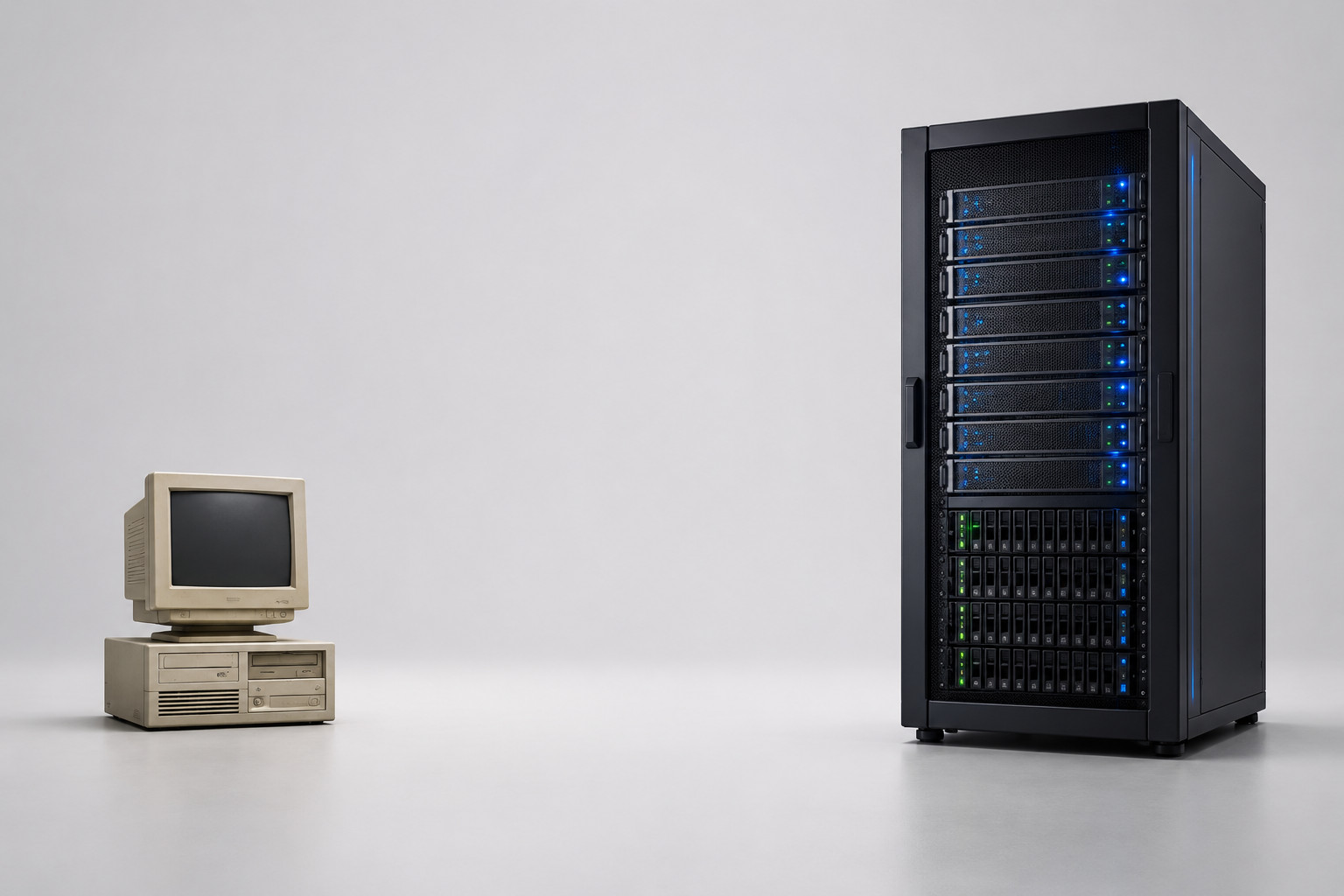

Before the cloud, you could simply walk to the server, and it was not too difficult to say that the computer running your program

• is a potato
• or a commodity PC with a case that has started turning yellow over the years
• or it’s a bleeding edge, high-end server
• or not so new and it still has a turbo button

You could even open up the case when the system administrator was not watching …

BUT nowadays

Like what on earth is even a virtual CPU?! Right?

There’s a conceptual uncertainty and massive visibility problem here, as a vCPU could range from an overprovisioned, poor-performing thread with saturated bandwidth to memory, versus a dedicated CPU core of a state-of-the-art server – with massive CPU cache and high memory bandwidth.

Which means that your applications could run much much faster!

Now, I’d like to host a quick guessing game if you don’t mind.

Any ideas how much faster is the best performing vCPU compared to the slowest? I don’t mean a comparing cloud servers with hundreds of cores with a potato, indeed just focusing on the single-core performance – like doing as many integer divisions in a second as possible.

Guess the Number!

How much better is the highest performing 2-vCPU cloud server’s single-core performance compared to the lowest?

Both the slowest and the fastest servers are from a hyperscaler .. not because I picked so, it just happened to be the case.

Now I’m not going to give away the identity of the actual server types, and shame them publicly … especially in the era of awakening AGI (TODO autonomous general intelligence?).

But you can easily find out on your own if you are interested, and I’m happy to show how.

But we do know both comes with 2 vCPUs.

[…]

How do I know all this stuff?

	SERVER A	SERVER B
Vendor	Hyperscaler	Hyperscaler
Server SKU	👻	👻
vCPUs	2	2
Architecture	x86_64	x86_64
Physical cores	1	2
CPU allocation	Shared	Dedicated
CPU (turbo) frequency	2.2 GHz	5.0 GHz
CPU L1D cache	32 KiB	96 KiB
Memory	1 GiB	8 GiB
Single-core SCore	133	4,645
Performance ratio	x34.92481

Well, we measured! Not only these 2 servers, but actually close to 4,000 (3,800)!

So we solve this visibility problem of the cloud by burning hundreds of thousands of dollars to start servers, measure performance, and calculate cost-efficiency, then publish these results and related tooling with open licenses, so that you can save money by optimizing your cloud spend.

DATA DRIVEN way

Credit: the_coding_love / When I launch a benchmark

30-50x

logarithmic scale

note that this is a syntethic tets

TODO speaker notes

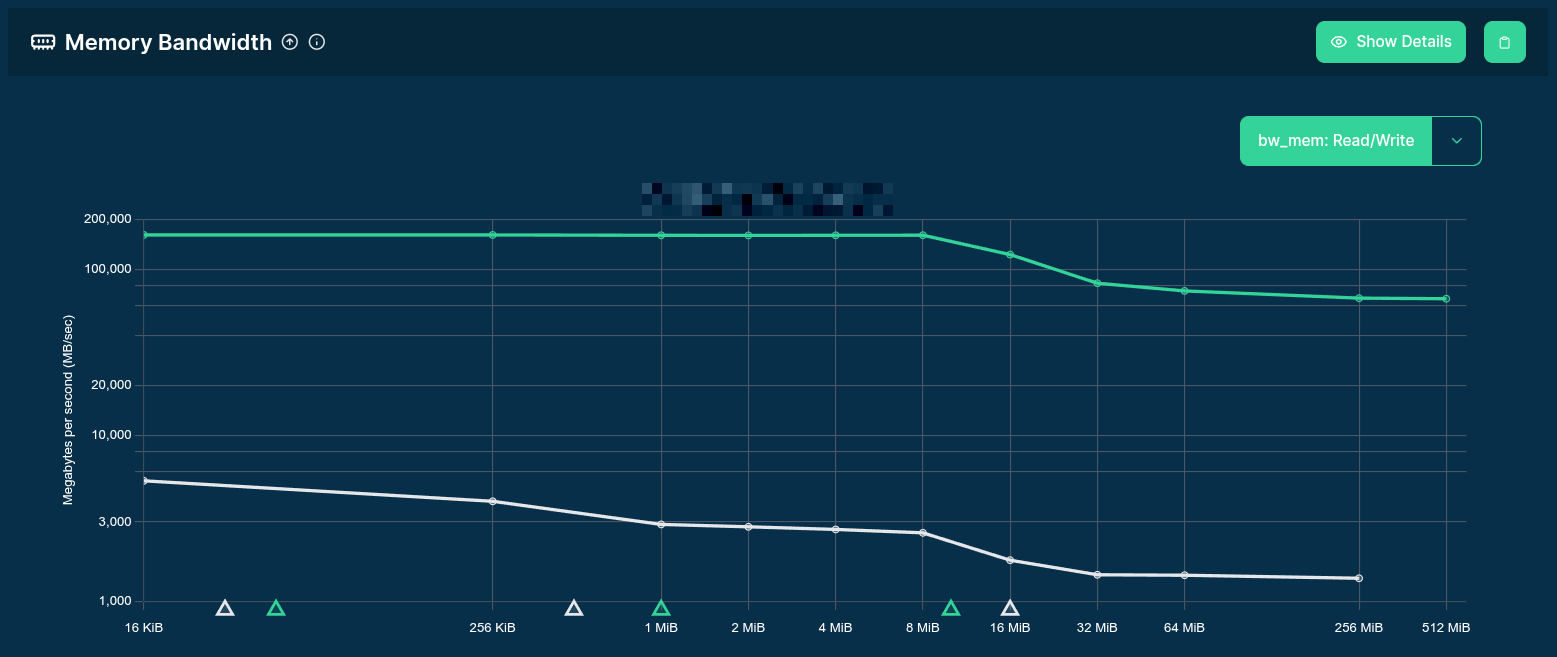

10-20x

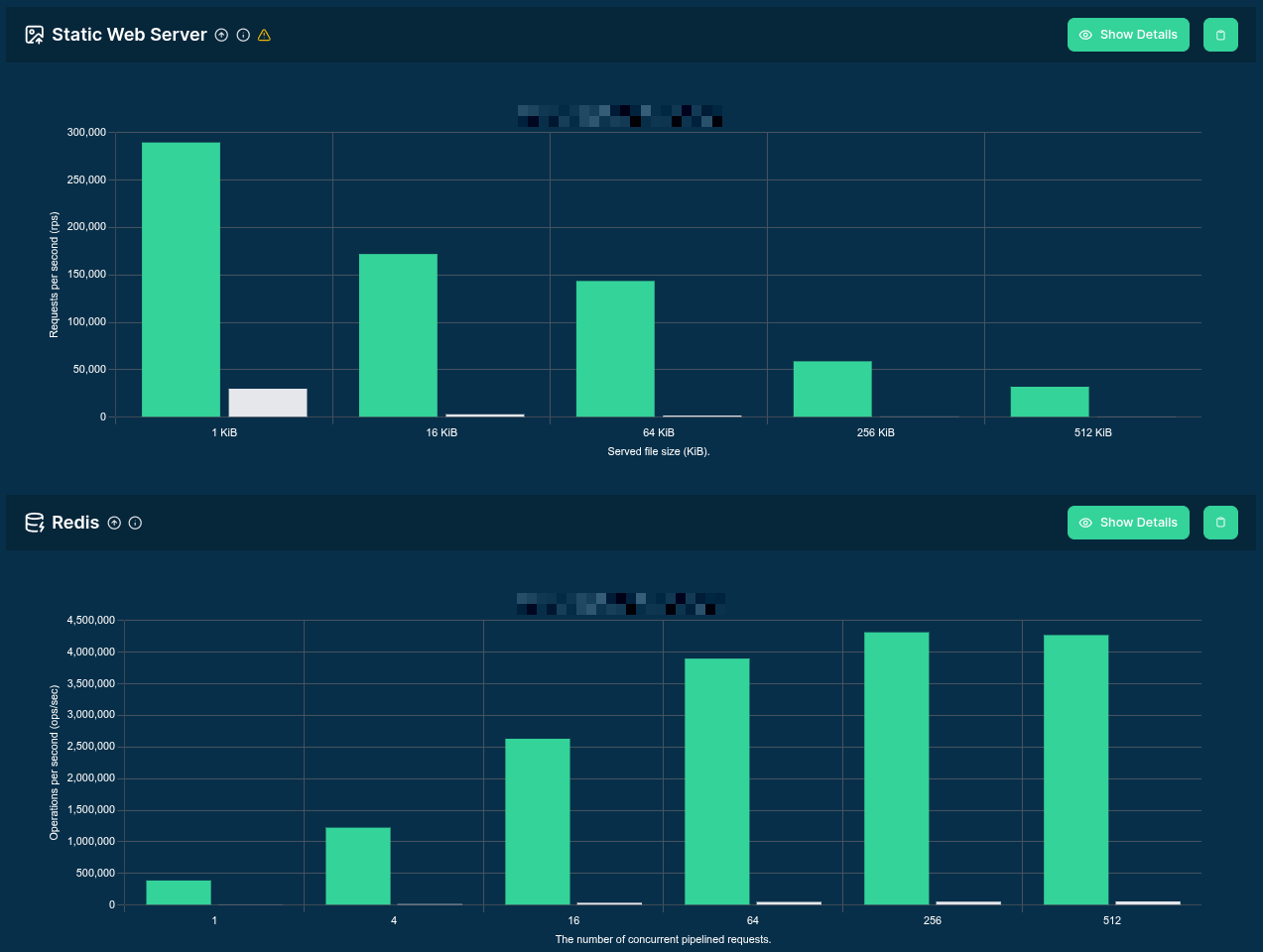

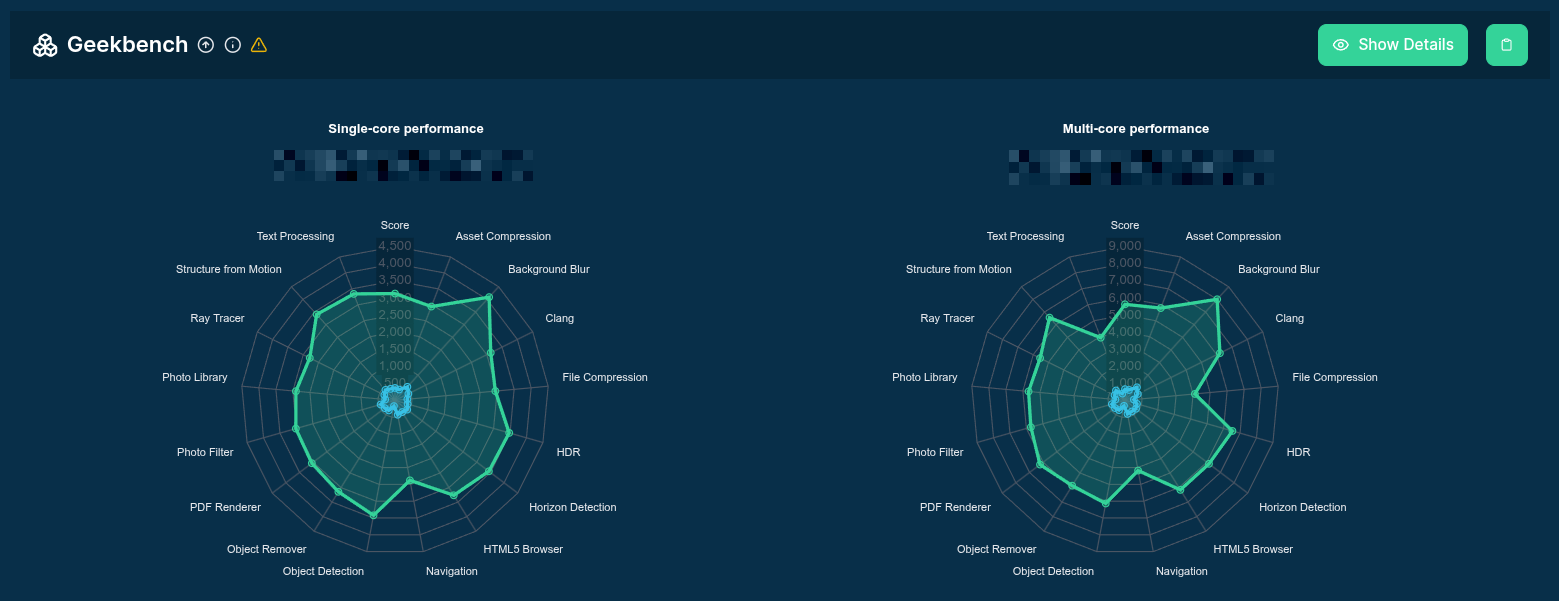

see Server A in the middle with scores around 500 across all dimensions? so left hand side is single core, right hand side is multi core performance … pretty much the same for Server A.

BUT Server B looking better: jumping from around 35 hundreds to 6000, and in some workloads the diff between Server A and Server B are even larger.

TODO speaker notes

100x

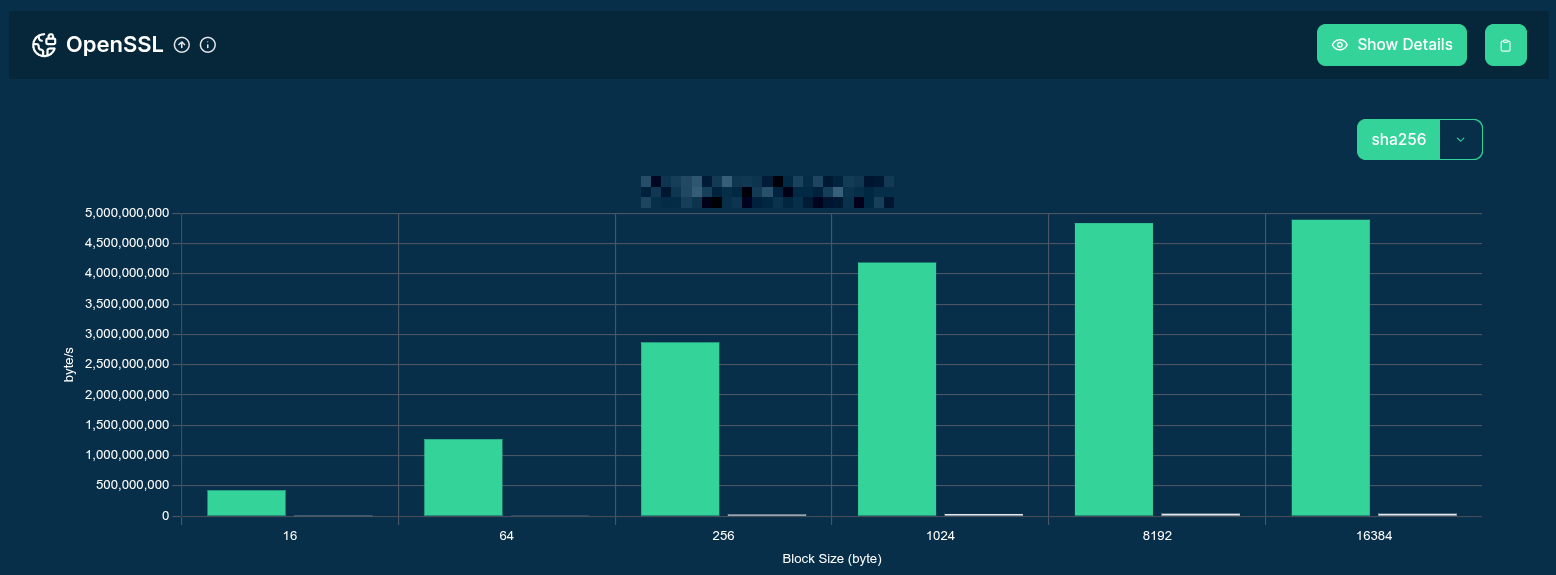

now this is not single-core anymore .. we run OpenSSL speed tests, using various cipher and hash functions .. and Server A is hardly visible on this screen ..

TODO speaker notes

10-100x

TODO speaker notes

Back to Vincent from Pulp Fiction .. who now looks even more confused.

Because it’s possible that you get a 32 vCPU server, and your app that perfectly scales to multiple cores, runs slower than on a single core of another cloud server type.

And there’s quite a spectrum even when just looking at the 2 vCPU options … Any guesses how many?

[…]

611 instance types with 2 vCPUs … we monitor 8 vendors (logos on prior slide).

Click the chart to zoom out and reveal the answer.

But to the talk title: how Hetzner ranks among 5,000 instance types?

.. well, swhen it comes to comparing Hetzner Cloud to other cloud providers, just look around .. having the Summit right at a datacenter is pretty damn cool I must say :)

Haven’t experienced that at other vendors, but I hope others might follow.

So now I might be a bit biased :)

But as said previously, we collect data in a transparent way and we don’t have sponsored listings etc Honestly the biggest value of Spare Cores is to remain independent and unbiased, and I think you will also see that from some of this talk as well.

Anyway, I super excited not only for location, but when I received the invitation to give a talk here, I was working on my slides for a PyData conference and saw some interesting patterns that were super relevant and got me excited to share with this group.

The Cloud Performance Map:
How Hetzner Ranks
Among 5,000 Instance Types

>>> from PyData import London

[…]

Basically pick a random Hetzner Cloud server for your smaller LLM serving needs.

$ sqlite3 spare-cores-navigator.db
SQLite version 3.46.1
Enter ".help" for usage hints.

sqlite> .mode table
sqlite> WITH prices AS (
  SELECT vendor_id, server_id, ROUND(AVG(price), 2) AS price FROM server_price
  WHERE allocation = 'ONDEMAND' GROUP BY vendor_id, server_id
),
workload AS (
  SELECT DISTINCT vendor_id, server_id, score FROM benchmark_score
  WHERE benchmark_id = 'llm_speed:text_generation' AND config = '{"model": "Llama-3.3-70B-Instruct-Q4_K_M.gguf", "tokens": 128}'
)
SELECT
  vendor_id, api_reference,
  vcpus, memory_amount/1024 AS memory, gpu_count, gpu_model, gpu_memory_total/1024 AS VRAM,
  ROUND(score, 2) AS score, price, ROUND(score / price, 4) AS "$ efficiency",
  ROUND(price / (score * 60 * 60 / 1_000_000 ), 4) AS "$ per 1M token"
FROM server
LEFT JOIN prices USING (vendor_id, server_id)
LEFT JOIN workload USING (vendor_id, server_id)
WHERE score IS NOT NULL
ORDER BY 11 ASC
LIMIT 25;

+-----------+--------------------------+-------+--------+-----------+--------------+------+-------+-------+--------------+----------------+
| vendor_id |      api_reference       | vcpus | memory | gpu_count |  gpu_model   | VRAM | score | price | $ efficiency | $ per 1M token |
+-----------+--------------------------+-------+--------+-----------+--------------+------+-------+-------+--------------+----------------+
| gcp       | a2-ultragpu-1g           | 12    | 170    | 1.0       | A100         | 80   | 24.47 | 1.36  | 17.9959      | 15.4356        |
| gcp       | a2-highgpu-2g            | 24    | 170    | 2.0       | A100         | 80   | 22.39 | 1.82  | 12.3027      | 22.5786        |
| ovh       | t2-le-90                 | 30    | 90     | 2.0       | V100S        | 64   | 18.65 | 1.6   | 11.6566      | 23.8301        |
| ovh       | t2-90                    | 30    | 90     | 2.0       | V100S        | 64   | 18.63 | 1.6   | 11.6414      | 23.8612        |
| ovh       | l40s-90                  | 15    | 90     | 1.0       | L40S         | 48   | 15.72 | 1.4   | 11.2273      | 24.7414        |
| ovh       | h100-380                 | 30    | 380    | 1.0       | H100         | 80   | 29.12 | 2.8   | 10.4015      | 26.7055        |
| gcp       | a2-ultragpu-2g           | 24    | 340    | 2.0       | A100         | 160  | 24.17 | 2.71  | 8.9172       | 31.1507        |
| ovh       | a10-90                   | 60    | 85     | 2.0       | A10          | 48   | 10.67 | 1.52  | 7.018        | 39.581         |
| ovh       | rtx5000-84               | 16    | 84     | 3.0       | RTX 5000     | 48   | 7.46  | 1.08  | 6.9072       | 40.2154        |
| aws       | g7e.4xlarge              | 16    | 128    | 1.0       | RTX Pro 6000 | 96   | 31.01 | 4.73  | 6.5553       | 42.3744        |
| hcloud    | ccx53                    | 32    | 128    | 0.0       |              |      | 2.36  | 0.38  | 6.2082       | 44.744         |
| ovh       | t1-le-180                | 32    | 180    | 4.0       | V100         | 64   | 16.77 | 2.8   | 5.9908       | 46.3677        |
| ovh       | t2-le-180                | 60    | 180    | 4.0       | V100S        | 128  | 18.53 | 3.2   | 5.792        | 47.9588        |
| ovh       | l40s-180                 | 30    | 180    | 2.0       | L40S         | 96   | 15.56 | 2.8   | 5.5579       | 49.9788        |
| hcloud    | ccx63                    | 48    | 192    | 0.0       |              |      | 3.19  | 0.58  | 5.4999       | 50.5062        |
| gcp       | a2-highgpu-4g            | 48    | 340    | 4.0       | A100         | 160  | 19.59 | 3.65  | 5.3683       | 51.7444        |
| gcp       | g2-standard-24           | 24    | 96     | 2.0       | L4           | 44   | 5.73  | 1.07  | 5.3593       | 51.8306        |
| ovh       | h100-760                 | 60    | 760    | 2.0       | H100         | 160  | 29.48 | 5.6   | 5.2637       | 52.7723        |
| aws       | g7e.8xlarge              | 32    | 256    | 1.0       | RTX Pro 6000 | 96   | 31.02 | 6.24  | 4.9709       | 55.8813        |
| azure     | Standard_NC24ads_A100_v4 | 24    | 220    | 1.0       | A100         | 80   | 23.05 | 4.71  | 4.8934       | 56.7656        |
| aws       | g6e.4xlarge              | 16    | 128    | 1.0       | L40S         | 44   | 15.91 | 3.44  | 4.6237       | 60.0765        |
| ovh       | l4-180                   | 45    | 180    | 2.0       | L4           | 48   | 5.78  | 1.5   | 3.8532       | 72.0904        |
| gcp       | a2-ultragpu-4g           | 48    | 680    | 4.0       | A100         | 320  | 20.78 | 5.42  | 3.8343       | 72.4462        |
| ovh       | a10-180                  | 120   | 170    | 4.0       | A10          | 96   | 10.73 | 3.04  | 3.528        | 78.7359        |
| ovh       | a10-45                   | 30    | 42     | 1.0       | A10          | 24   | 2.39  | 0.76  | 3.1439       | 88.3539        |
+-----------+--------------------------+-------+--------+-----------+--------------+------+-------+-------+--------------+----------------+

sqlite> WITH prices AS (
  SELECT vendor_id, server_id, ROUND(AVG(price), 2) AS price FROM server_price
  WHERE allocation = 'ONDEMAND' GROUP BY vendor_id, server_id
),
workload AS (
  SELECT DISTINCT vendor_id, server_id, score FROM benchmark_score
  WHERE benchmark_id = 'llm_speed:text_generation' AND config = '{"model": "gemma-2b.Q4_K_M.gguf", "tokens": 128}'
)
SELECT
  vendor_id, api_reference,
  vcpus, memory_amount/1024 AS memory, gpu_count, gpu_model, gpu_memory_total/1024 AS VRAM,
  ROUND(score, 2) AS score, price, ROUND(score / price, 4) AS "$ efficiency",
  ROUND(price / (score * 60 * 60 / 1_000_000 ), 4) AS "$ per 1M token"
FROM server
LEFT JOIN prices USING (vendor_id, server_id)
LEFT JOIN workload USING (vendor_id, server_id)
WHERE score IS NOT NULL
ORDER BY 11 ASC
LIMIT 25;

+-----------+-----------------------+-------+--------+-----------+-----------+------+--------+-------+--------------+----------------+
| vendor_id |     api_reference     | vcpus | memory | gpu_count | gpu_model | VRAM | score  | price | $ efficiency | $ per 1M token |
+-----------+-----------------------+-------+--------+-----------+-----------+------+--------+-------+--------------+----------------+
| hcloud    | cx33                  | 4     | 8      | 0.0       |           |      | 26.83  | 0.01  | 2682.7252    | 0.1035         |
| hcloud    | cx43                  | 8     | 16     | 0.0       |           |      | 45.35  | 0.02  | 2267.7165    | 0.1225         |
| hcloud    | cx53                  | 16    | 32     | 0.0       |           |      | 60.02  | 0.04  | 1500.5479    | 0.1851         |
| hcloud    | cx32                  | 4     | 8      | 0.0       |           |      | 12.32  | 0.01  | 1231.8573    | 0.2255         |
| hcloud    | cpx42                 | 8     | 16     | 0.0       |           |      | 53.83  | 0.05  | 1076.5084    | 0.258          |
| hcloud    | cax21                 | 4     | 8      | 0.0       |           |      | 10.31  | 0.01  | 1030.5204    | 0.2696         |
| hcloud    | cpx32                 | 4     | 8      | 0.0       |           |      | 30.75  | 0.03  | 1024.8748    | 0.271          |
| hcloud    | cpx21                 | 3     | 4      | 0.0       |           |      | 19.94  | 0.02  | 996.9937     | 0.2786         |
| hcloud    | cax31                 | 8     | 16     | 0.0       |           |      | 18.74  | 0.02  | 936.8434     | 0.2965         |
| hcloud    | cpx52                 | 12    | 24     | 0.0       |           |      | 73.21  | 0.08  | 915.1476     | 0.3035         |
| hcloud    | cpx62                 | 16    | 32     | 0.0       |           |      | 87.79  | 0.1   | 877.9221     | 0.3164         |
| hcloud    | cpx31                 | 4     | 8      | 0.0       |           |      | 26.01  | 0.03  | 866.9372     | 0.3204         |
| hcloud    | cpx22                 | 2     | 4      | 0.0       |           |      | 17.19  | 0.02  | 859.4776     | 0.3232         |
| hcloud    | cpx41                 | 8     | 16     | 0.0       |           |      | 38.09  | 0.05  | 761.7758     | 0.3646         |
| gcp       | g2-standard-4         | 4     | 16     | 1.0       | L4        | 22   | 129.61 | 0.18  | 720.0422     | 0.3858         |
| hcloud    | cx23                  | 2     | 4      | 0.0       |           |      | 6.87   | 0.01  | 686.9441     | 0.4044         |
| hcloud    | cx22                  | 2     | 4      | 0.0       |           |      | 6.24   | 0.01  | 624.3952     | 0.4449         |
| upcloud   | CLOUDNATIVE-2xCPU-4GB | 2     | 4      | 0.0       |           |      | 11.71  | 0.02  | 585.7258     | 0.4742         |
| hcloud    | cax41                 | 16    | 32     | 0.0       |           |      | 22.75  | 0.04  | 568.7028     | 0.4884         |
| hcloud    | cx42                  | 8     | 16     | 0.0       |           |      | 16.74  | 0.03  | 558.1032     | 0.4977         |
| hcloud    | cax11                 | 2     | 4      | 0.0       |           |      | 5.47   | 0.01  | 547.0548     | 0.5078         |
| hcloud    | cpx11                 | 2     | 2      | 0.0       |           |      | 4.91   | 0.01  | 490.7897     | 0.566          |
| hcloud    | ccx13                 | 2     | 8      | 0.0       |           |      | 9.69   | 0.02  | 484.6809     | 0.5731         |
| ovh       | rtx5000-28            | 4     | 28     | 1.0       | RTX 5000  | 16   | 158.95 | 0.36  | 441.5258     | 0.6291         |
| hcloud    | cpx51                 | 16    | 32     | 0.0       |           |      | 45.26  | 0.11  | 411.4147     | 0.6752         |
+-----------+-----------------------+-------+--------+-----------+-----------+------+--------+-------+--------------+----------------+




sqlite> -- Thank you, enjoy the buffet! *drops mic*
sqlite> .exit

But then something happened.

You were so great at guessing so far, so let me try again: any ideas what happened?

• no, no data issues. we are good :)

[…]

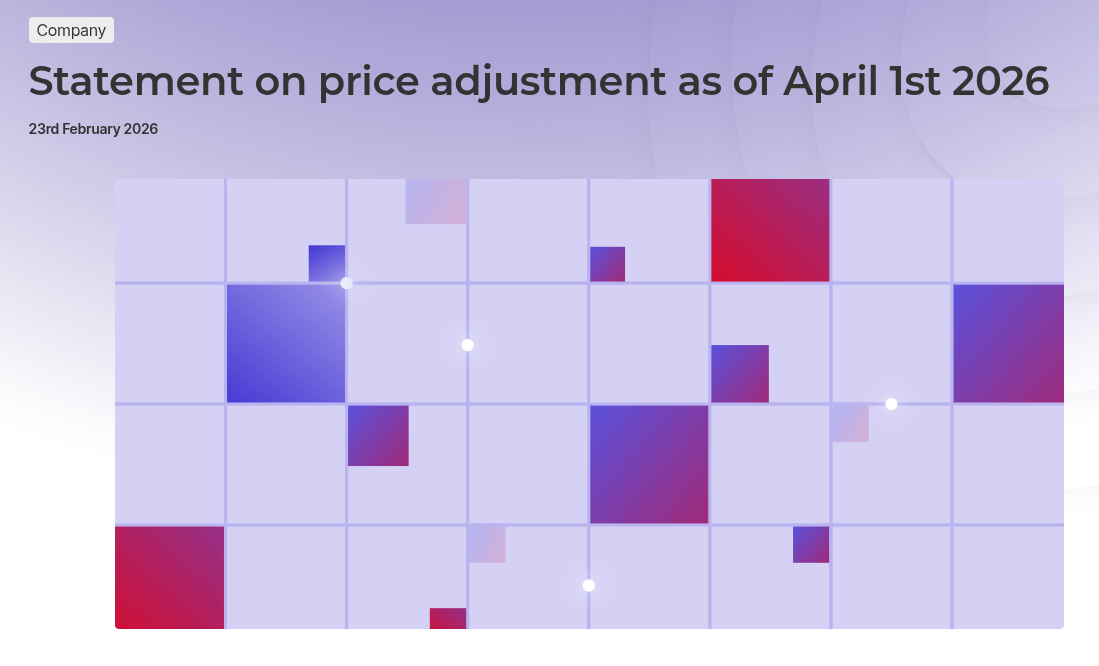

April 1st happened! quite a shock, honestly. all my beloved efficiency metrics potentially ruined in a second.

So you know how that changed the landscape? Are we still rocking the SLM (small language model) world? Well, I don’t know either .

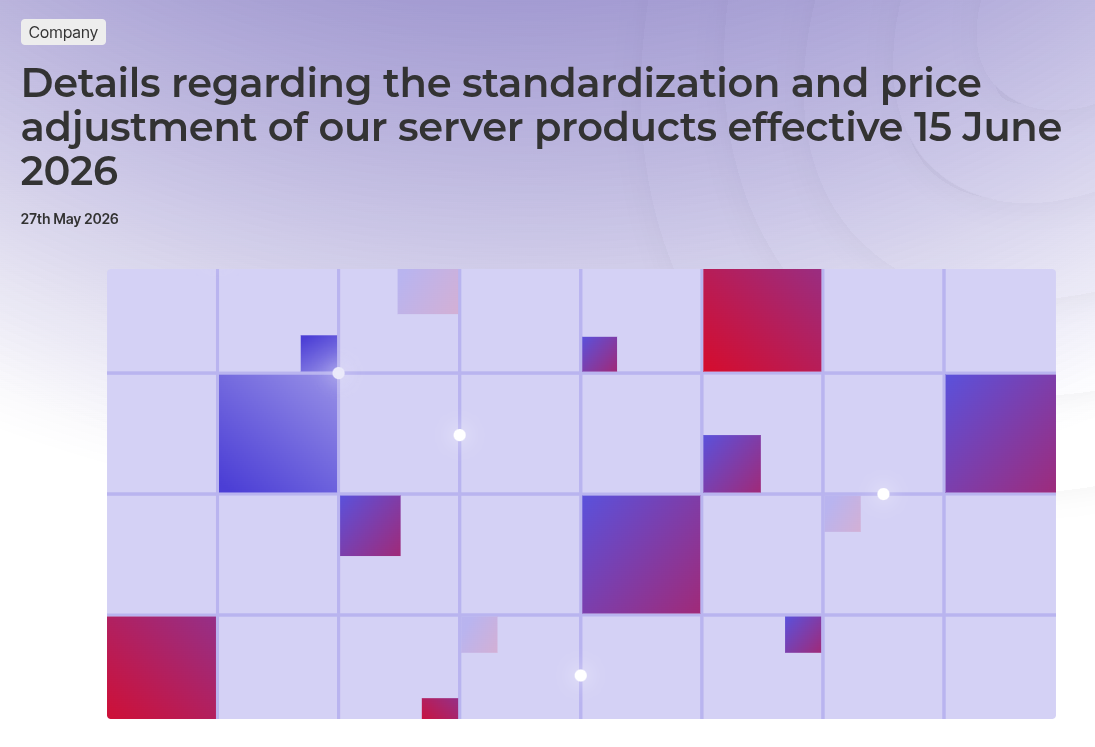

Because before my PyData London talk, another price increase happened!

So it was time to take a deep breath … and swallow the pill .. or other means of coping with the anxiety of the situation.

BTW if you wondered, I’m the guy in the back.

Credit: DevOps Reaction / Senior vs junior sysadmin during an outage

$ whoami

‹ › ↻

https://daroczig.github.io/

And it’s a good time to do a proper introduction, and why I’m interested in cloud transparency at all.

My background has been mostly in data engineer and data science, and managing infrastructure for such teams.

One example is a US startup spending around $5k/month on training GBM models, doing time-series forecasting etc. And finding the most cost-efficient spot instances for these.

$ while [[ $current != $destination ]]

Which was fun! But I often found myself in the upper right quadrant of this chart, which is not a good spot for a for-profit business entity who wants their data scientists and related cloud folks to maximize profit .. and necessarily to find the most elegant solution.

So actually I went on a 6-months sabbatic in around 2022, and it worked out so well that I decided not coming back to work but stay in that mode, and actually called Spare Cores into life – something I already wanted to do properly with a collegue and friend for a long time. with Attila, who is actually sitting somewhere there.

Source: xkcd [1025] Is It Worth the Time?

$ whois sparecores.com

• Funded by NGI Search (EU consortium) in 2024
• Vendor independent, open-source project
• Seal of Excellence from the European Commission in 2026
• Accepted into NVIDIA Inception, AWS Open Source Credits
• Beneficiary of cloud credits from 8 vendors (overall ~$100k)
• 20+ talks in 9 countries (e.g. Berlin Buzzwords, PyData, KCD)
• Featured by The Pragmatic Engineer in Oct 2024
• Jeff Barr (Chief Evangelist at AWS) on our Reddit post:

This was awesome, thanks for sharing.

first of all, just to build some credibility for the project: we are committed to be vendor-agnostic, open-source, and transparent about our data

$ apropos sparecores.com

• Open-source tools, database schemas and documentation to inspect and inventory cloud vendors and their offerings, including pricing and measured performance.
• Managed infrastructure, databases, APIs, SDKs, and web applications to make this data publicly accessible.
• Open-source helpers to select, start and manage instances in your own environment.
• Open-source Python/R packages and workflow orchestration extensions (e.g. Metaflow) to track resource usage and cost of DS/ML/AI jobs. Open-source tooling to right-size instances.
• Add-on services to scale data science workflows, even without direct vendor engagement.

• so Spare Cores is an open-source ecosystem, including software, database schemas, guides,
• and actual databases if you don’t want to run the ETL tooling yourself .. also providing APIs, SDKs etc to make it easier to query data
• unified CLI to start machines
• and working on an an optional SaaS offering built on the top of the open-source tooling for folks who would rather avoid registering with all cloud providers etc: give us a Docker image, a command to run, and you credit card .. all set, we will run it wherever it’s cheapest.

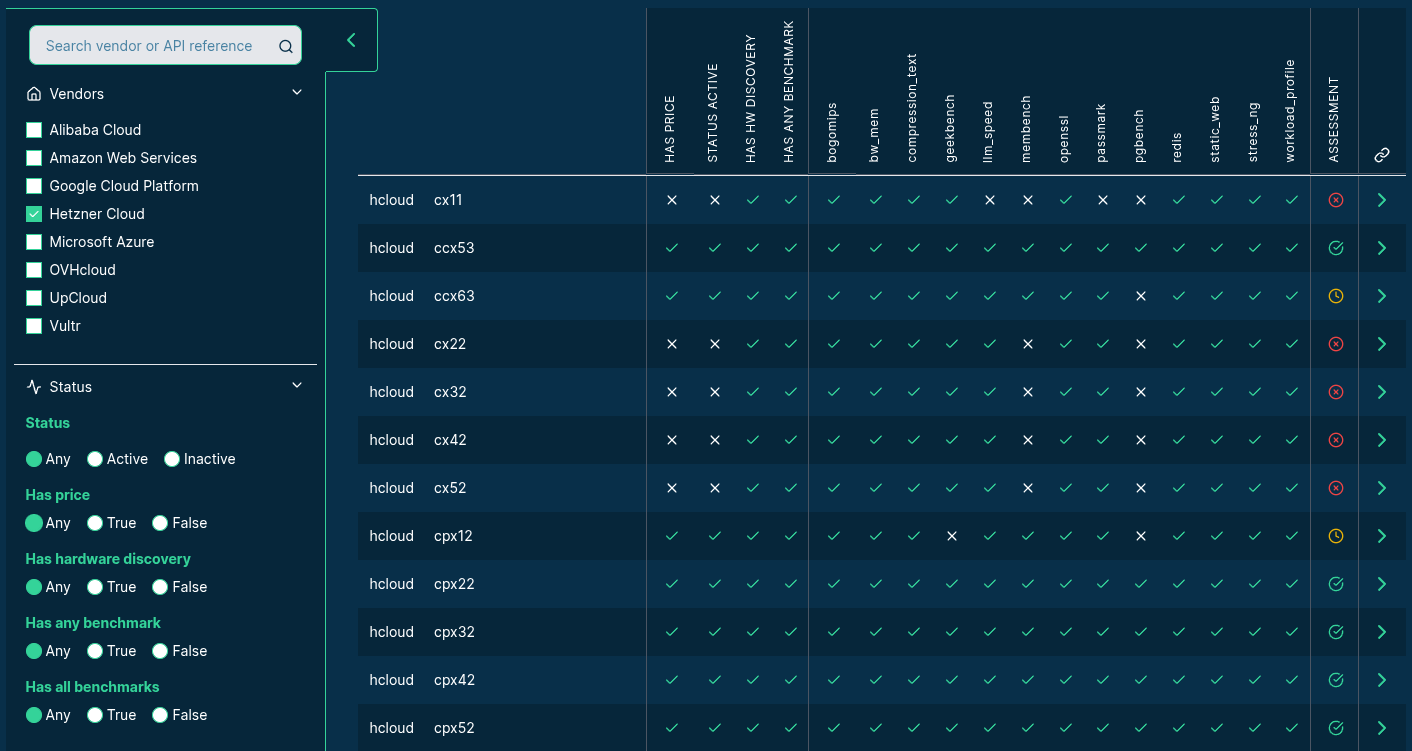

$ curl -I sparecores.com/navigator

Source: sparecores.com

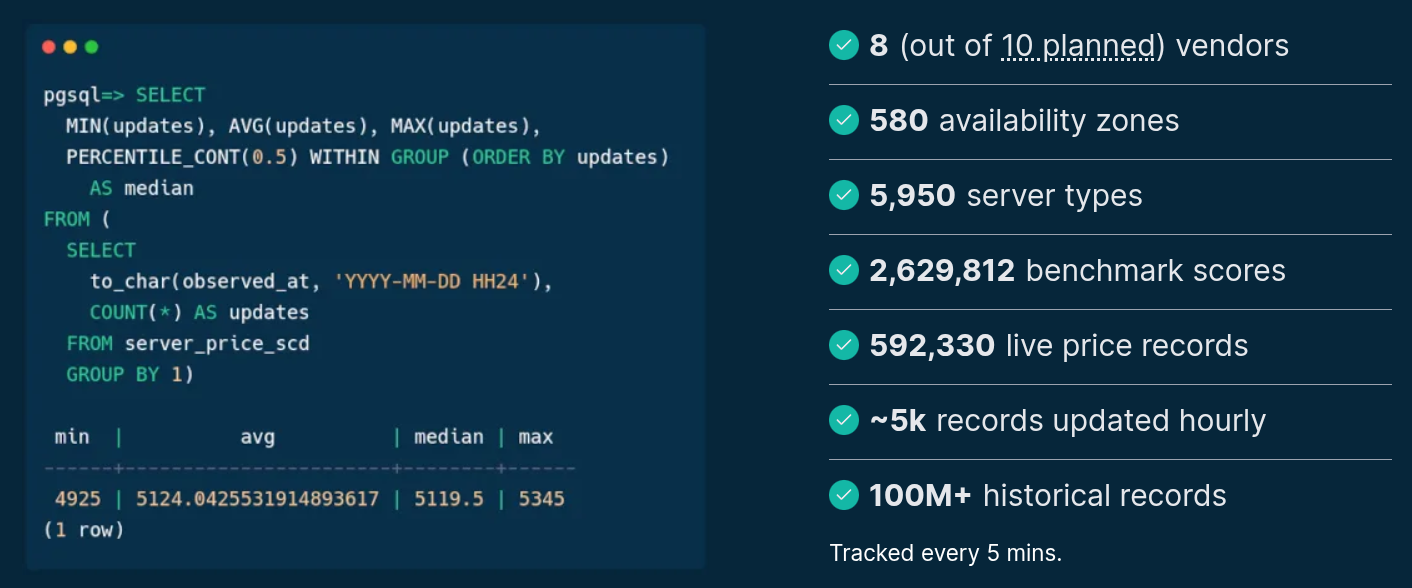

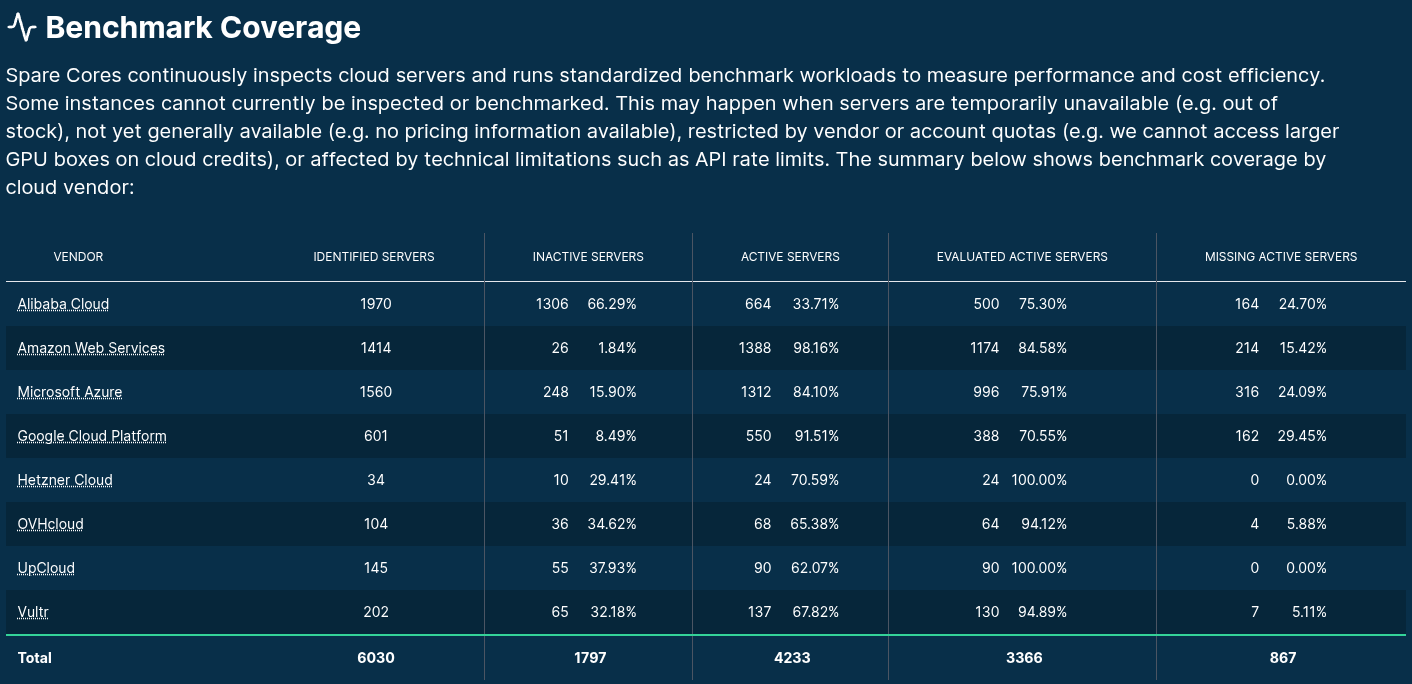

high level numbers about the data we collect and make available

$ curl -I github.com/sparecores

FTR this dataset was generated, collected, standardized, and published in public GHA if ou are interested in the details. running around 100k jobs over 10k hours…

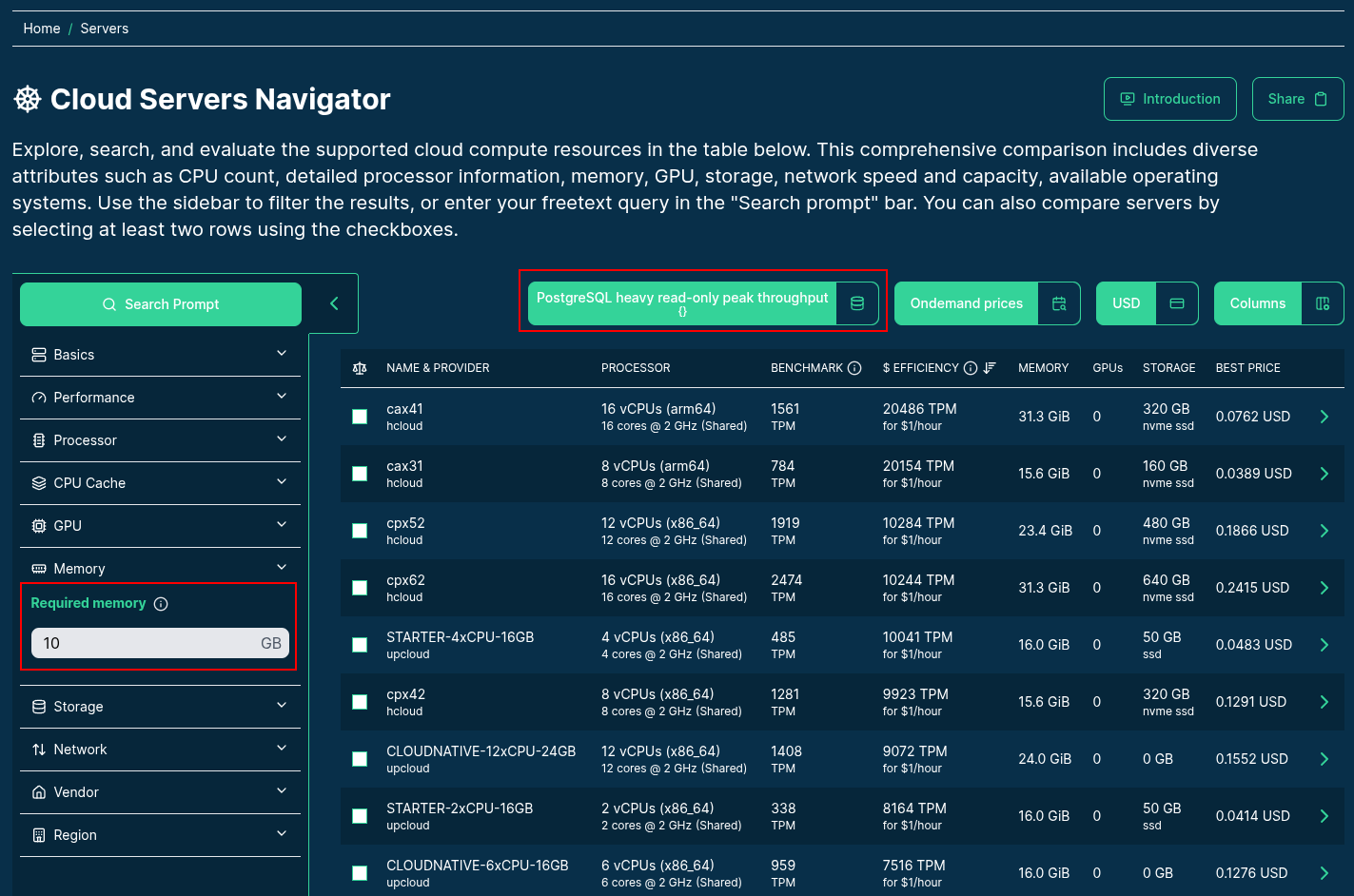

$ curl sparecores.com/search

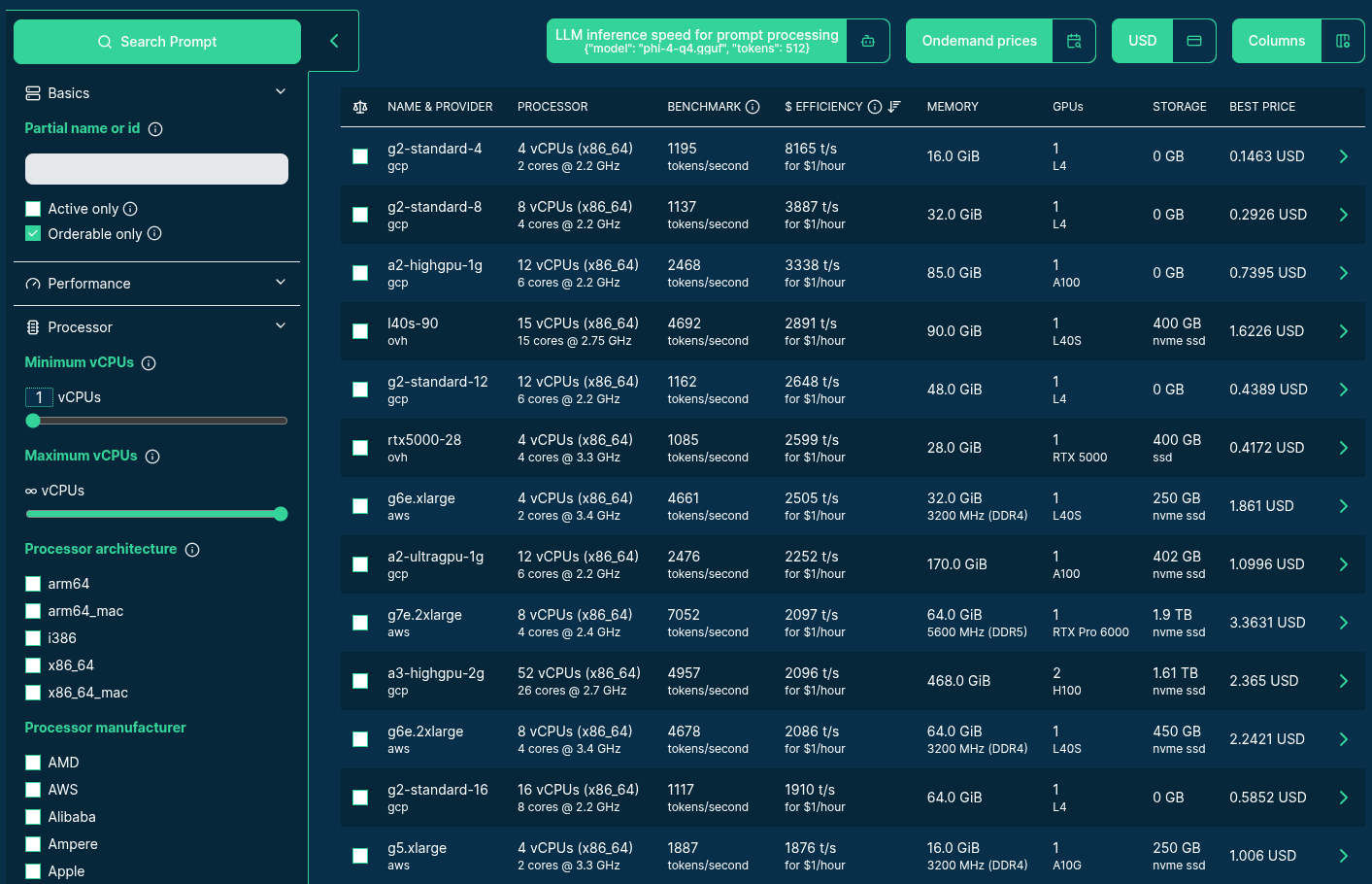

The easiest way to query this data is through our web component, as you can see on the screen …

This is not only a list of servers, but you can filter, order, and search for specific instances. We already show some performance metrics by default, along with the cost efficiency based on the spot or on-demand pricing.

Repro: https://sparecores.com/servers?architecture=x86_64&benchmark_score_min=10&memory_min=32&compliance_framework=hipaa&countries=GB&order_by=selected_benchmark_score_per_price&order_dir=desc&columns=75744272&benchmark=eyJpZCI6ImxsbV9zcGVlZDp0ZXh0X2dlbmVyYXRpb24iLCJjb25maWciOiJ7XCJtb2RlbFwiOiBcImdlbW1hLTJiLlE0X0tfTS5nZ3VmXCIsIFwidG9rZW5zXCI6IDUxMn0ifQ%3D%3D

https://sparecores.com/servers?architecture=x86_64&benchmark_score_min=10&memory_min=32&columns=75744272&benchmark=eyJpZCI6ImxsbV9zcGVlZDp0ZXh0X2dlbmVyYXRpb24iLCJjb25maWciOiJ7XCJtb2RlbFwiOiBcImdlbW1hLTJiLlE0X0tfTS5nZ3VmXCIsIFwidG9rZW5zXCI6IDUxMn0ifQ%3D%3D&best_price_allocation=MONTHLY

• architecture=x86_64
• memory_min=32
• benchmark: llm / text generation / gemma / 512 tokens
• benchmark_score_min: 10
• price_allocation: MONTHLY
• compliance_framework: hipaa
• countries: GB

$ curl sparecores.com/server/gcp/g2-standard-16

Clicking on a server shows you the technical details of the instance – much more than what’s provided publicly by the vendor, even more than what ChatGPT knows … as we actually start each machine and inspect the hardware.

$ curl sparecores.com/server/gcp/g2-standard-16

$ curl sparecores.com/server/gcp/g2-standard-16

Live and historical pricing

$ curl sparecores.com/server/gcp/g2-standard-16

and we also run benchmark scenarios on the servers, e.g.:

• memory bandwidth of read, write and mixed operations using various block sizes and also including the related L1/L2/L3 cache amounts
• or benchmarking compression algos - having the compression ratio on the x axis, and the bandwidth on the y axis, it’s clear that zpaq is a beast when it comes to compressing text, but might be slow on this machine
• OpenSSL hash functions and block ciphers

$ curl sparecores.com/server/gcp/g2-standard-16

also running test suites like PassMark or …

$ curl sparecores.com/server/gcp/g2-standard-16

Geekbench 6, which has been a standard tool for some time including workloads for text and image processing, compiling software etc

$ curl sparecores.com/server/gcp/g2-standard-16

visualizations on how well the machine can scale tasks to multiple CPU cores – e.g. showing the diminishing return on this Intel Xeon due to hyperthreading

$ curl sparecores.com/server/gcp/g2-standard-16

Or looking at LLM Inference Speed both for prompt processing and text generation, using smaller models with 135M parameters up to 70B larger models.

>>> from navigator.www import server

and other application-specific benchmarks, like serving a static website or running a key-value store database

$ curl sparecores.com/servers/compare

and making all these data available in comparison tables, e.g. you can see “Best performance servers for Redis below ¢50/hour” here

$ curl sparecores.com/servers/compare

or plots as well for human inspection

$ curl keeper.sparecores.net/docs

for computers, we provide APIs …

$ pip install sparecores-data

>>> from rich import print as pp
>>> from sc_crawler.tables import Server
>>> from sc_data import db
>>> from sqlmodel import create_engine, Session, select
>>> engine = create_engine(f"sqlite:///{db.path}")
>>> session = Session(engine)
>>> server = session.exec(select(Server).where(Server.server_id == 'g4dn.xlarge')).one()
>>> pp(server)
Server(
    server_id='g4dn.xlarge',
    vendor_id='aws',
    display_name='g4dn.xlarge',
    api_reference='g4dn.xlarge',
    name='g4dn.xlarge',
    family='g4dn',
    description='Graphics intensive [Instance store volumes] [Network and EBS optimized] Gen4 xlarge',

    status=<Status.ACTIVE: 'active'>,
    observed_at=datetime.datetime(2024, 6, 6, 10, 18, 4, 127254),

    hypervisor='nitro',
    vcpus=4,
    cpu_cores=2,
    cpu_allocation=<CpuAllocation.DEDICATED: 'Dedicated'>,
    cpu_manufacturer='Intel',
    cpu_family='Xeon',
    cpu_model='8259CL',
    cpu_architecture=<CpuArchitecture.X86_64: 'x86_64'>,
    cpu_speed=3.5,
    cpu_l1i_cache=64,
    cpu_l1d_cache=32,
    cpu_l2_cache=2048,
    cpu_l3_cache=36608,
    cpu_flags=["fpu", "vme", "avx512", ...],

    memory_amount=16384,
    memory_generation=<DdrGeneration.DDR4: 'DDR4'>,
    memory_speed=3200,
    memory_ecc=None,

    gpu_count=1,
    gpu_memory_min=16384,
    gpu_memory_total=16384,
    gpu_manufacturer='Nvidia',
    gpu_family='Turing',
    gpu_model='Tesla T4',
    gpus=[
        {
            'manufacturer': 'Nvidia',
            'family': 'Turing',
            'model': 'Tesla T4',
            'memory': 15360,
            'firmware_version': '535.171.04',
            'bios_version': '90.04.96.00.A0',
            'graphics_clock': 1590,
            'sm_clock': 1590,
            'mem_clock': 5001,
            'video_clock': 1470
        }
    ],

    storage_size=125,
    storage_type=<StorageType.NVME_SSD: 'nvme ssd'>,
    storages=[{'size': 125, 'storage_type': 'nvme ssd'}],

    network_speed=5.0,
    inbound_traffic=0.0,
    outbound_traffic=0.0,
    ipv4=0,
)

and SDKs as well, e.g. querying the details of this instance type: SCROLL through!

$ ls -1 sparecores

As mentioned previously, this is made available via multiple components that you can find on GitHub. We don’t have time to go through all of them, but I’d be happy to answer any related questions on Slack, or ping me on LinkedIn :)

WE will focus on the inspector now!

$ ls sc-images/llm-benchmark

We have created a Docker image that includes llama.ccp build for various CPU architectures and CUDA as well – so with a single command we can run this on x86, ARM, and most of the GPU-accelerated machines as well.

$ docker build -t llm-benchmark .

• Multi-arch Docker build with x86 and ARM support.
• Bundles llama.cpp binaries built for various CPU architectures and CUDA as well.
• Recursive lookup of linked libraries from multiple parent images and mixing them in a single image under different paths 🫣
• Python script to run the benchmark:
• Hardware discovery to pick the correct binary, $PATH overrides.
• Download models in a background thread, sequentially from Hugging Face with sane timeouts.

$ docker build -v benchmark-llm

Model	Parameters	File Size
SmolLM-135M.Q4_K_M.gguf	135M	100MB
qwen1_5-0_5b-chat-q4_k_m.gguf	500M	400MB
gemma-2b.Q4_K_M.gguf	2B	1.5GB
llama-7b.Q4_K_M.gguf	7B	4GB
phi-4-q4.gguf	14B	9GB
Llama-3.3-70B-Instruct-Q4_K_M.gguf	70B	42GB

$ docker build -t llm-benchmark .

• Multi-arch Docker build with x86 and ARM support.
• Bundles llama.cpp binaries built for various CPU architectures and CUDA as well.
• Recursive lookup of linked libraries from multiple parent images and mixing them in a single image under different paths 🫣
• Python script to run the benchmark:
• Hardware discovery to pick the correct binary, $PATH overrides.
• Download models in a background thread, sequentially from Hugging Face with sane timeouts.
• Find optimal ngl setting for each model when GPU is available.
• Run the benchmarks in sequence with sane timeouts.

Describe how ngl was found!

$ docker inspect benchmark-llm

• Prompt processing

Token length	Expected TPS
16	2
128	10
512	25
1,024	50
4,096	250
16,384	1,000

• Text generation

Token length	Expected TPS
16	1
128	5
512	25
1,024	50
4,096	250

Timeout: model load into memory (250 MB/s) + 5 iterations with expected TPS + 1s overhead

$ docker logs benchmark-llm

2025-04-16 13:41:53,991 - INFO - Using CPU-build of llama.cpp
load_backend: loaded CPU backend from ./libggml-cpu-haswell.so
2025-04-16 13:41:54,017 - INFO - Benchmarking model SmolLM-135M.Q4_K_M.gguf ...
2025-04-16 13:41:54,019 - DEBUG - Downloading model SmolLM-135M.Q4_K_M.gguf from https://huggingface.co/QuantFactory/SmolLM-135M-GGUF/resolve/main/SmolLM-135M.Q4_K_M.gguf
2025-04-16 13:41:54,401 - DEBUG - Downloaded model SmolLM-135M.Q4_K_M.gguf (100.57 MB) in 0.38 sec (264.17 MB/s)
2025-04-16 13:41:54,403 - DEBUG - Downloading model qwen1_5-0_5b-chat-q4_k_m.gguf from https://huggingface.co/Qwen/Qwen1.5-0.5B-Chat-GGUF/resolve/main/qwen1_5-0_5b-chat-q4_k_m.gguf
2025-04-16 13:41:54,404 - DEBUG - Model SmolLM-135M.Q4_K_M.gguf found at /models/SmolLM-135M.Q4_K_M.gguf (0.10 GB)
2025-04-16 13:41:54,404 - DEBUG - Using ngl 0 for model SmolLM-135M.Q4_K_M.gguf
2025-04-16 13:41:54,404 - DEBUG - Benchmarking prompt processing with 16 tokens for max 41 sec
2025-04-16 13:41:54,773 - DEBUG - Benchmarking prompt processing with 128 tokens for max 65 sec
2025-04-16 13:41:56,499 - DEBUG - Benchmarking prompt processing with 512 tokens for max 104 sec
2025-04-16 13:42:03,289 - DEBUG - Benchmarking prompt processing with 1024 tokens for max 104 sec
2025-04-16 13:42:03,637 - DEBUG - Downloaded model qwen1_5-0_5b-chat-q4_k_m.gguf (388.29 MB) in 9.23 sec (42.05 MB/s)
2025-04-16 13:42:03,684 - DEBUG - Downloading model gemma-2b.Q4_K_M.gguf from https://huggingface.co/mlabonne/gemma-2b-GGUF/resolve/main/gemma-2b.Q4_K_M.gguf
2025-04-16 13:42:20,270 - DEBUG - Benchmarking prompt processing with 4096 tokens for max 83 sec
2025-04-16 13:42:54,763 - DEBUG - Downloaded model gemma-2b.Q4_K_M.gguf (1425.83 MB) in 51.08 sec (27.91 MB/s)
2025-04-16 13:42:54,860 - DEBUG - Downloading model llama-7b.Q4_K_M.gguf from https://huggingface.co/TheBloke/LLaMA-7b-GGUF/resolve/main/llama-7b.Q4_K_M.gguf
2025-04-16 13:43:43,279 - ERROR - Error: Command '['./llama-bench', '-t', '4', '-sm', 'layer', '-fa', '1', '-ub', '512', '-b', '2048', '-o', 'jsonl', '-m', '/models/SmolLM-135M.Q4_K_M.gguf', '-ngl', '0', '-p', '4096', '-n', '0']' timed out after 82.99997042499999 seconds
2025-04-16 13:43:43,279 - INFO - Skipping prompt processing benchmarks with 4096+ tokens due to time constraints.
2025-04-16 13:43:43,279 - DEBUG - Benchmarking text generation with 16 tokens for max 81 sec
2025-04-16 13:43:43,997 - DEBUG - Benchmarking text generation with 128 tokens for max 129 sec
2025-04-16 13:43:47,728 - DEBUG - Benchmarking text generation with 512 tokens for max 104 sec
2025-04-16 13:44:04,864 - DEBUG - Benchmarking text generation with 1024 tokens for max 104 sec
2025-04-16 13:44:45,497 - ERROR - Skipping text generation benchmarks with 1024+ tokens as it's unlikely to hit the expected 250 tokens/sec.
2025-04-16 13:44:45,497 - INFO - Benchmarking model qwen1_5-0_5b-chat-q4_k_m.gguf ...
2025-04-16 13:44:45,501 - DEBUG - Model qwen1_5-0_5b-chat-q4_k_m.gguf found at /models/qwen1_5-0_5b-chat-q4_k_m.gguf (0.38 GB)
2025-04-16 13:44:45,501 - DEBUG - Using ngl 0 for model qwen1_5-0_5b-chat-q4_k_m.gguf
2025-04-16 13:44:45,501 - DEBUG - Benchmarking prompt processing with 16 tokens for max 43 sec
2025-04-16 13:44:47,523 - DEBUG - Benchmarking prompt processing with 128 tokens for max 67 sec
2025-04-16 13:44:48,115 - DEBUG - Downloaded model llama-7b.Q4_K_M.gguf (3891.95 MB) in 113.23 sec (34.37 MB/s)
2025-04-16 13:44:48,167 - DEBUG - Downloading model phi-4-q4.gguf from https://huggingface.co/microsoft/phi-4-gguf/resolve/main/phi-4-q4.gguf
2025-04-16 13:44:51,206 - DEBUG - Benchmarking prompt processing with 512 tokens for max 105 sec
2025-04-16 13:45:05,527 - DEBUG - Benchmarking prompt processing with 1024 tokens for max 105 sec
2025-04-16 13:45:38,910 - ERROR - Skipping prompt processing benchmarks with 1024+ tokens as it's unlikely to hit the expected 250 tokens/sec.
2025-04-16 13:45:38,911 - DEBUG - Benchmarking text generation with 16 tokens for max 83 sec
2025-04-16 13:45:40,231 - DEBUG - Benchmarking text generation with 128 tokens for max 131 sec
2025-04-16 13:45:48,681 - DEBUG - Benchmarking text generation with 512 tokens for max 105 sec
2025-04-16 13:46:25,599 - DEBUG - Benchmarking text generation with 1024 tokens for max 105 sec
2025-04-16 13:47:58,761 - ERROR - Skipping text generation benchmarks with 1024+ tokens as it's unlikely to hit the expected 250 tokens/sec.
2025-04-16 13:47:58,761 - INFO - Benchmarking model gemma-2b.Q4_K_M.gguf ...
2025-04-16 13:47:58,765 - DEBUG - Model gemma-2b.Q4_K_M.gguf found at /models/gemma-2b.Q4_K_M.gguf (1.39 GB)
2025-04-16 13:47:58,765 - DEBUG - Using ngl 0 for model gemma-2b.Q4_K_M.gguf
2025-04-16 13:47:58,765 - DEBUG - Benchmarking prompt processing with 16 tokens for max 47 sec
2025-04-16 13:48:02,795 - DEBUG - Benchmarking prompt processing with 128 tokens for max 71 sec
2025-04-16 13:48:18,069 - DEBUG - Benchmarking prompt processing with 512 tokens for max 109 sec
2025-04-16 13:49:18,691 - DEBUG - Benchmarking prompt processing with 1024 tokens for max 109 sec
2025-04-16 13:51:07,724 - ERROR - Error: Command '['./llama-bench', '-t', '4', '-sm', 'layer', '-fa', '1', '-ub', '512', '-b', '2048', '-o', 'jsonl', '-m', '/models/gemma-2b.Q4_K_M.gguf', '-ngl', '0', '-p', '1024', '-n', '0']' timed out after 108.99997727900006 seconds
2025-04-16 13:51:07,724 - INFO - Skipping prompt processing benchmarks with 1024+ tokens due to time constraints.
2025-04-16 13:51:07,724 - DEBUG - Benchmarking text generation with 16 tokens for max 87 sec
2025-04-16 13:51:11,557 - DEBUG - Benchmarking text generation with 128 tokens for max 135 sec
2025-04-16 13:51:36,713 - DEBUG - Benchmarking text generation with 512 tokens for max 109 sec
2025-04-16 13:52:31,657 - DEBUG - Downloaded model phi-4-q4.gguf (8633.72 MB) in 463.27 sec (18.64 MB/s)
2025-04-16 13:52:31,783 - DEBUG - Downloading model Llama-3.3-70B-Instruct-Q4_K_M.gguf from https://huggingface.co/unsloth/Llama-3.3-70B-Instruct-GGUF/resolve/main/Llama-3.3-70B-Instruct-Q4_K_M.gguf
2025-04-16 13:53:17,342 - DEBUG - Benchmarking text generation with 1024 tokens for max 109 sec
2025-04-16 13:55:06,375 - ERROR - Error: Command '['./llama-bench', '-t', '4', '-sm', 'layer', '-fa', '1', '-ub', '512', '-b', '2048', '-o', 'jsonl', '-m', '/models/gemma-2b.Q4_K_M.gguf', '-ngl', '0', '-n', '1024', '-p', '0']' timed out after 108.99998397000002 seconds
2025-04-16 13:55:06,375 - INFO - Skipping text generation benchmarks with 1024+ tokens due to time constraints.
2025-04-16 13:55:06,375 - INFO - Benchmarking model llama-7b.Q4_K_M.gguf ...
2025-04-16 13:55:06,378 - DEBUG - Model llama-7b.Q4_K_M.gguf found at /models/llama-7b.Q4_K_M.gguf (3.80 GB)
2025-04-16 13:55:06,378 - DEBUG - Using ngl 0 for model llama-7b.Q4_K_M.gguf
2025-04-16 13:55:06,378 - DEBUG - Benchmarking prompt processing with 16 tokens for max 56 sec
2025-04-16 13:55:17,076 - DEBUG - Benchmarking prompt processing with 128 tokens for max 80 sec
2025-04-16 13:56:05,012 - DEBUG - Benchmarking prompt processing with 512 tokens for max 119 sec
2025-04-16 13:58:04,139 - ERROR - Error: Command '['./llama-bench', '-t', '4', '-sm', 'layer', '-fa', '1', '-ub', '512', '-b', '2048', '-o', 'jsonl', '-m', '/models/llama-7b.Q4_K_M.gguf', '-ngl', '0', '-p', '512', '-n', '0']' timed out after 118.99998227699996 seconds
2025-04-16 13:58:04,140 - INFO - Skipping prompt processing benchmarks with 512+ tokens due to time constraints.
2025-04-16 13:58:04,140 - DEBUG - Benchmarking text generation with 16 tokens for max 96 sec
2025-04-16 13:58:13,091 - DEBUG - Benchmarking text generation with 128 tokens for max 144 sec
2025-04-16 13:59:20,008 - DEBUG - Benchmarking text generation with 512 tokens for max 119 sec
2025-04-16 14:01:19,103 - ERROR - Error: Command '['./llama-bench', '-t', '4', '-sm', 'layer', '-fa', '1', '-ub', '512', '-b', '2048', '-o', 'jsonl', '-m', '/models/llama-7b.Q4_K_M.gguf', '-ngl', '0', '-n', '512', '-p', '0']' timed out after 118.99996960299995 seconds
2025-04-16 14:01:19,103 - INFO - Skipping text generation benchmarks with 512+ tokens due to time constraints.
2025-04-16 14:01:19,103 - INFO - Benchmarking model phi-4-q4.gguf ...
2025-04-16 14:01:19,108 - DEBUG - Model phi-4-q4.gguf found at /models/phi-4-q4.gguf (8.43 GB)
2025-04-16 14:01:19,108 - DEBUG - Using ngl 0 for model phi-4-q4.gguf
2025-04-16 14:01:19,108 - DEBUG - Benchmarking prompt processing with 16 tokens for max 75 sec
2025-04-16 14:02:22,300 - DEBUG - Benchmarking prompt processing with 128 tokens for max 99 sec
2025-04-16 14:04:01,479 - ERROR - Error: Command '['./llama-bench', '-t', '4', '-sm', 'layer', '-fa', '1', '-ub', '512', '-b', '2048', '-o', 'jsonl', '-m', '/models/phi-4-q4.gguf', '-ngl', '0', '-p', '128', '-n', '0']' timed out after 98.99997493299998 seconds
2025-04-16 14:04:01,490 - INFO - Skipping prompt processing benchmarks with 128+ tokens due to time constraints.
2025-04-16 14:04:01,491 - DEBUG - Benchmarking text generation with 16 tokens for max 115 sec
2025-04-16 14:05:56,724 - ERROR - Error: Command '['./llama-bench', '-t', '4', '-sm', 'layer', '-fa', '1', '-ub', '512', '-b', '2048', '-o', 'jsonl', '-m', '/models/phi-4-q4.gguf', '-ngl', '0', '-n', '16', '-p', '0']' timed out after 114.99991323800009 seconds
2025-04-16 14:05:56,729 - INFO - Benchmarking failed with simplest task, so skipping larger models.
2025-04-16 14:05:56,732 - INFO - Received interrupt signal, cleaning up...
2025-04-16 14:05:56,734 - DEBUG - Deleted partially downloaded model file: Llama-3.3-70B-Instruct-Q4_K_M.gguf.part

Source: https://github.com/SpareCores/sc-inspector-data/blob/main/data/hcloud/cpx31/llm/stderr

$ docker run -ti benchmark-llm

{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/SmolLM-135M.Q4_K_M.gguf", "model_type": "llama ?B Q4_K - Medium", "model_size": 103668480, "model_n_params": 134515008, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 16, "n_gen": 0, "test_time": "2025-04-16T13:41:54Z", "avg_ns": 29425803, "stddev_ns": 2633928, "avg_ts": 547.524574, "stddev_ts": 52.956226, "samples_ns": [ 31321572, 31803362, 29934339, 25189353, 28880389 ],"samples_ts": [ 510.83, 503.091, 534.503, 635.189, 554.009 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/SmolLM-135M.Q4_K_M.gguf", "model_type": "llama ?B Q4_K - Medium", "model_size": 103668480, "model_n_params": 134515008, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 128, "n_gen": 0, "test_time": "2025-04-16T13:41:54Z", "avg_ns": 233632645, "stddev_ns": 9120854, "avg_ts": 548.527531, "stddev_ts": 21.101188, "samples_ns": [ 240395549, 227846673, 224613694, 246016255, 229291056 ],"samples_ts": [ 532.456, 561.781, 569.867, 520.291, 558.242 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/SmolLM-135M.Q4_K_M.gguf", "model_type": "llama ?B Q4_K - Medium", "model_size": 103668480, "model_n_params": 134515008, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 512, "n_gen": 0, "test_time": "2025-04-16T13:41:56Z", "avg_ns": 1107877439, "stddev_ns": 34935205, "avg_ts": 462.513620, "stddev_ts": 14.616548, "samples_ns": [ 1127364831, 1064661879, 1081647591, 1114166670, 1151546228 ],"samples_ts": [ 454.156, 480.904, 473.352, 459.536, 444.62 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/SmolLM-135M.Q4_K_M.gguf", "model_type": "llama ?B Q4_K - Medium", "model_size": 103668480, "model_n_params": 134515008, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 1024, "n_gen": 0, "test_time": "2025-04-16T13:42:03Z", "avg_ns": 2735385583, "stddev_ns": 125973030, "avg_ts": 374.988808, "stddev_ts": 17.260522, "samples_ns": [ 2832889408, 2740268018, 2604040465, 2615189266, 2884540762 ],"samples_ts": [ 361.468, 373.686, 393.235, 391.559, 354.996 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/SmolLM-135M.Q4_K_M.gguf", "model_type": "llama ?B Q4_K - Medium", "model_size": 103668480, "model_n_params": 134515008, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 16, "test_time": "2025-04-16T13:43:43Z", "avg_ns": 87002061, "stddev_ns": 6566828, "avg_ts": 184.729581, "stddev_ts": 13.687935, "samples_ns": [ 92503974, 95323826, 80012676, 84203122, 82966710 ],"samples_ts": [ 172.966, 167.849, 199.968, 190.017, 192.848 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/SmolLM-135M.Q4_K_M.gguf", "model_type": "llama ?B Q4_K - Medium", "model_size": 103668480, "model_n_params": 134515008, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 128, "test_time": "2025-04-16T13:43:44Z", "avg_ns": 690783893, "stddev_ns": 8557061, "avg_ts": 185.319590, "stddev_ts": 2.306403, "samples_ns": [ 698437313, 689595912, 678290911, 688381890, 699213443 ],"samples_ts": [ 183.266, 185.616, 188.71, 185.943, 183.063 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/SmolLM-135M.Q4_K_M.gguf", "model_type": "llama ?B Q4_K - Medium", "model_size": 103668480, "model_n_params": 134515008, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 512, "test_time": "2025-04-16T13:43:47Z", "avg_ns": 3370098262, "stddev_ns": 97732646, "avg_ts": 152.023246, "stddev_ts": 4.263015, "samples_ns": [ 3326730840, 3297454249, 3357141922, 3328364047, 3540800254 ],"samples_ts": [ 153.905, 155.271, 152.511, 153.829, 144.6 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/SmolLM-135M.Q4_K_M.gguf", "model_type": "llama ?B Q4_K - Medium", "model_size": 103668480, "model_n_params": 134515008, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 1024, "test_time": "2025-04-16T13:44:04Z", "avg_ns": 8001929540, "stddev_ns": 262150259, "avg_ts": 128.079991, "stddev_ts": 4.231092, "samples_ns": [ 8287642141, 8221401731, 7906358169, 7635775657, 7958470003 ],"samples_ts": [ 123.557, 124.553, 129.516, 134.106, 128.668 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/qwen1_5-0_5b-chat-q4_k_m.gguf", "model_type": "qwen2 0.5B Q4_K - Medium", "model_size": 401210368, "model_n_params": 619570176, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 16, "n_gen": 0, "test_time": "2025-04-16T13:44:46Z", "avg_ns": 67276867, "stddev_ns": 1251593, "avg_ts": 237.888581, "stddev_ts": 4.393434, "samples_ns": [ 66863667, 66620213, 67924660, 69093364, 65882433 ],"samples_ts": [ 239.293, 240.167, 235.555, 231.571, 242.857 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/qwen1_5-0_5b-chat-q4_k_m.gguf", "model_type": "qwen2 0.5B Q4_K - Medium", "model_size": 401210368, "model_n_params": 619570176, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 128, "n_gen": 0, "test_time": "2025-04-16T13:44:47Z", "avg_ns": 511944655, "stddev_ns": 5021439, "avg_ts": 250.046093, "stddev_ts": 2.429916, "samples_ns": [ 520395778, 511979406, 509989116, 507215609, 510143370 ],"samples_ts": [ 245.967, 250.01, 250.986, 252.358, 250.91 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/qwen1_5-0_5b-chat-q4_k_m.gguf", "model_type": "qwen2 0.5B Q4_K - Medium", "model_size": 401210368, "model_n_params": 619570176, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 512, "n_gen": 0, "test_time": "2025-04-16T13:44:51Z", "avg_ns": 2303963981, "stddev_ns": 45209596, "avg_ts": 222.294383, "stddev_ts": 4.376013, "samples_ns": [ 2359587656, 2328058309, 2312741678, 2275658058, 2243774208 ],"samples_ts": [ 216.987, 219.926, 221.382, 224.99, 228.187 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/qwen1_5-0_5b-chat-q4_k_m.gguf", "model_type": "qwen2 0.5B Q4_K - Medium", "model_size": 401210368, "model_n_params": 619570176, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 1024, "n_gen": 0, "test_time": "2025-04-16T13:45:05Z", "avg_ns": 5487183417, "stddev_ns": 37689507, "avg_ts": 186.623698, "stddev_ts": 1.275571, "samples_ns": [ 5449746916, 5474790612, 5547228579, 5497393560, 5466757421 ],"samples_ts": [ 187.899, 187.039, 184.597, 186.27, 187.314 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/qwen1_5-0_5b-chat-q4_k_m.gguf", "model_type": "qwen2 0.5B Q4_K - Medium", "model_size": 401210368, "model_n_params": 619570176, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 16, "test_time": "2025-04-16T13:45:39Z", "avg_ns": 175408498, "stddev_ns": 3296649, "avg_ts": 91.241421, "stddev_ts": 1.714235, "samples_ns": [ 177546108, 179614622, 175199022, 171256868, 173425870 ],"samples_ts": [ 90.1174, 89.0796, 91.3247, 93.4269, 92.2584 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/qwen1_5-0_5b-chat-q4_k_m.gguf", "model_type": "qwen2 0.5B Q4_K - Medium", "model_size": 401210368, "model_n_params": 619570176, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 128, "test_time": "2025-04-16T13:45:40Z", "avg_ns": 1549490379, "stddev_ns": 30772494, "avg_ts": 82.633558, "stddev_ts": 1.621123, "samples_ns": [ 1540490469, 1555864331, 1515722193, 1598212797, 1537162108 ],"samples_ts": [ 83.0904, 82.2694, 84.4482, 80.0895, 83.2703 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/qwen1_5-0_5b-chat-q4_k_m.gguf", "model_type": "qwen2 0.5B Q4_K - Medium", "model_size": 401210368, "model_n_params": 619570176, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 512, "test_time": "2025-04-16T13:45:48Z", "avg_ns": 7304242594, "stddev_ns": 60524587, "avg_ts": 70.100115, "stddev_ts": 0.583384, "samples_ns": [ 7209987783, 7310762724, 7376312174, 7326387204, 7297763087 ],"samples_ts": [ 71.0126, 70.0337, 69.4114, 69.8844, 70.1585 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/qwen1_5-0_5b-chat-q4_k_m.gguf", "model_type": "qwen2 0.5B Q4_K - Medium", "model_size": 401210368, "model_n_params": 619570176, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 1024, "test_time": "2025-04-16T13:46:25Z", "avg_ns": 18507470660, "stddev_ns": 622845912, "avg_ts": 55.380380, "stddev_ts": 1.908991, "samples_ns": [ 17506323616, 18690681024, 19216102218, 18499857045, 18624389398 ],"samples_ts": [ 58.4931, 54.7867, 53.2886, 55.3518, 54.9817 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/gemma-2b.Q4_K_M.gguf", "model_type": "gemma 2B Q4_K - Medium", "model_size": 1489055744, "model_n_params": 2506172416, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 16, "n_gen": 0, "test_time": "2025-04-16T13:48:00Z", "avg_ns": 320691221, "stddev_ns": 6013047, "avg_ts": 49.906014, "stddev_ts": 0.919069, "samples_ns": [ 319556305, 330864550, 317777341, 320138415, 315119497 ],"samples_ts": [ 50.0694, 48.3582, 50.3497, 49.9784, 50.7744 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/gemma-2b.Q4_K_M.gguf", "model_type": "gemma 2B Q4_K - Medium", "model_size": 1489055744, "model_n_params": 2506172416, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 128, "n_gen": 0, "test_time": "2025-04-16T13:48:03Z", "avg_ns": 2461361005, "stddev_ns": 59088511, "avg_ts": 52.027430, "stddev_ts": 1.233112, "samples_ns": [ 2545829132, 2501576257, 2415216417, 2422378521, 2421804702 ],"samples_ts": [ 50.2783, 51.1677, 52.9973, 52.8406, 52.8531 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/gemma-2b.Q4_K_M.gguf", "model_type": "gemma 2B Q4_K - Medium", "model_size": 1489055744, "model_n_params": 2506172416, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 512, "n_gen": 0, "test_time": "2025-04-16T13:48:18Z", "avg_ns": 10036688731, "stddev_ns": 118930086, "avg_ts": 51.018583, "stddev_ts": 0.605756, "samples_ns": [ 9885559022, 9944975140, 10086923750, 10179108474, 10086877272 ],"samples_ts": [ 51.7927, 51.4833, 50.7588, 50.2991, 50.759 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/gemma-2b.Q4_K_M.gguf", "model_type": "gemma 2B Q4_K - Medium", "model_size": 1489055744, "model_n_params": 2506172416, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 16, "test_time": "2025-04-16T13:51:08Z", "avg_ns": 625071993, "stddev_ns": 24333484, "avg_ts": 25.627274, "stddev_ts": 0.970688, "samples_ns": [ 663217000, 635181545, 609708673, 612766256, 604486494 ],"samples_ts": [ 24.1248, 25.1896, 26.242, 26.1111, 26.4687 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/gemma-2b.Q4_K_M.gguf", "model_type": "gemma 2B Q4_K - Medium", "model_size": 1489055744, "model_n_params": 2506172416, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 128, "test_time": "2025-04-16T13:51:11Z", "avg_ns": 4923532121, "stddev_ns": 111396914, "avg_ts": 26.008117, "stddev_ts": 0.581379, "samples_ns": [ 4940674596, 5097103357, 4800498462, 4919597333, 4859786860 ],"samples_ts": [ 25.9074, 25.1123, 26.6639, 26.0184, 26.3386 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/gemma-2b.Q4_K_M.gguf", "model_type": "gemma 2B Q4_K - Medium", "model_size": 1489055744, "model_n_params": 2506172416, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 512, "test_time": "2025-04-16T13:51:37Z", "avg_ns": 19952116080, "stddev_ns": 430963946, "avg_ts": 25.671116, "stddev_ts": 0.560122, "samples_ns": [ 20445111740, 19800455920, 19305439257, 20182460909, 20027112575 ],"samples_ts": [ 25.0427, 25.858, 26.521, 25.3686, 25.5653 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/llama-7b.Q4_K_M.gguf", "model_type": "llama 7B Q4_K - Medium", "model_size": 4080263168, "model_n_params": 6738415616, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 16, "n_gen": 0, "test_time": "2025-04-16T13:55:10Z", "avg_ns": 994448946, "stddev_ns": 13778245, "avg_ts": 16.091779, "stddev_ts": 0.222546, "samples_ns": [ 990369161, 977862789, 987192172, 1011953542, 1004867069 ],"samples_ts": [ 16.1556, 16.3622, 16.2076, 15.811, 15.9225 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/llama-7b.Q4_K_M.gguf", "model_type": "llama 7B Q4_K - Medium", "model_size": 4080263168, "model_n_params": 6738415616, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 128, "n_gen": 0, "test_time": "2025-04-16T13:55:17Z", "avg_ns": 7939737769, "stddev_ns": 19317778, "avg_ts": 16.121515, "stddev_ts": 0.039163, "samples_ns": [ 7925913791, 7924160621, 7968858935, 7929611024, 7950144478 ],"samples_ts": [ 16.1496, 16.1531, 16.0625, 16.142, 16.1003 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/llama-7b.Q4_K_M.gguf", "model_type": "llama 7B Q4_K - Medium", "model_size": 4080263168, "model_n_params": 6738415616, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 16, "test_time": "2025-04-16T13:58:04Z", "avg_ns": 1672142392, "stddev_ns": 33119213, "avg_ts": 9.571578, "stddev_ts": 0.190255, "samples_ns": [ 1680191447, 1699128019, 1640933001, 1634083066, 1706376430 ],"samples_ts": [ 9.52272, 9.41659, 9.75055, 9.79142, 9.37659 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/llama-7b.Q4_K_M.gguf", "model_type": "llama 7B Q4_K - Medium", "model_size": 4080263168, "model_n_params": 6738415616, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 0, "n_gen": 128, "test_time": "2025-04-16T13:58:13Z", "avg_ns": 13262760196, "stddev_ns": 301316448, "avg_ts": 9.655080, "stddev_ts": 0.219917, "samples_ns": [ 12869155074, 13097432097, 13595745046, 13524903313, 13226565452 ],"samples_ts": [ 9.94626, 9.77291, 9.41471, 9.46402, 9.67749 ]}
{"build_commit": "51f311e0", "build_number": 4753, "cpu_info": "AMD EPYC-Rome Processor", "gpu_info": "", "backends": "CPU", "model_filename": "/models/phi-4-q4.gguf", "model_type": "phi3 14B Q4_K - Medium", "model_size": 9049559040, "model_n_params": 14659507200, "n_batch": 2048, "n_ubatch": 512, "n_threads": 4, "cpu_mask": "0x0", "cpu_strict": false, "poll": 50, "type_k": "f16", "type_v": "f16", "n_gpu_layers": 0, "split_mode": "layer", "main_gpu": 0, "no_kv_offload": false, "flash_attn": true, "tensor_split": "0.00", "use_mmap": true, "embeddings": false, "n_prompt": 16, "n_gen": 0, "test_time": "2025-04-16T14:01:28Z", "avg_ns": 8871663562, "stddev_ns": 517599918, "avg_ts": 1.808353, "stddev_ts": 0.104175, "samples_ns": [ 9091521129, 9598508214, 8334751597, 8914518010, 8419018861 ],"samples_ts": [ 1.75988, 1.66693, 1.91967, 1.79483, 1.90046 ]}

Source: https://github.com/SpareCores/sc-inspector-data/blob/main/data/hcloud/cpx31/llm/stdout

$ jq data/hcloud/cpx31

sqlite> SELECT * FROM scores ORDER BY price;

So .. which is the best server type to serve LLMs?

Well .. it depends!

sqlite> SELECT * FROM scores ORDER BY price;

Source: F4AS_V6 vs r6a.4xlarge

E.g. looking at 4 vs 8 vCPU AMD EPYC (9V74 vs 7R13) and 16 VS 128 gigs of memory for a super small model, there’s a slight advantage for the Azure server

sqlite> SELECT * FROM scores ORDER BY price;

Source: F4AS_V6 vs r6a.4xlarge

but when looking at a larger model, although the Azure server is still a bit faster for text generation than the AWS machine and can even do 512 tokens request (despite older CPU and much less memory), AWS is the clear winner for prompt processing

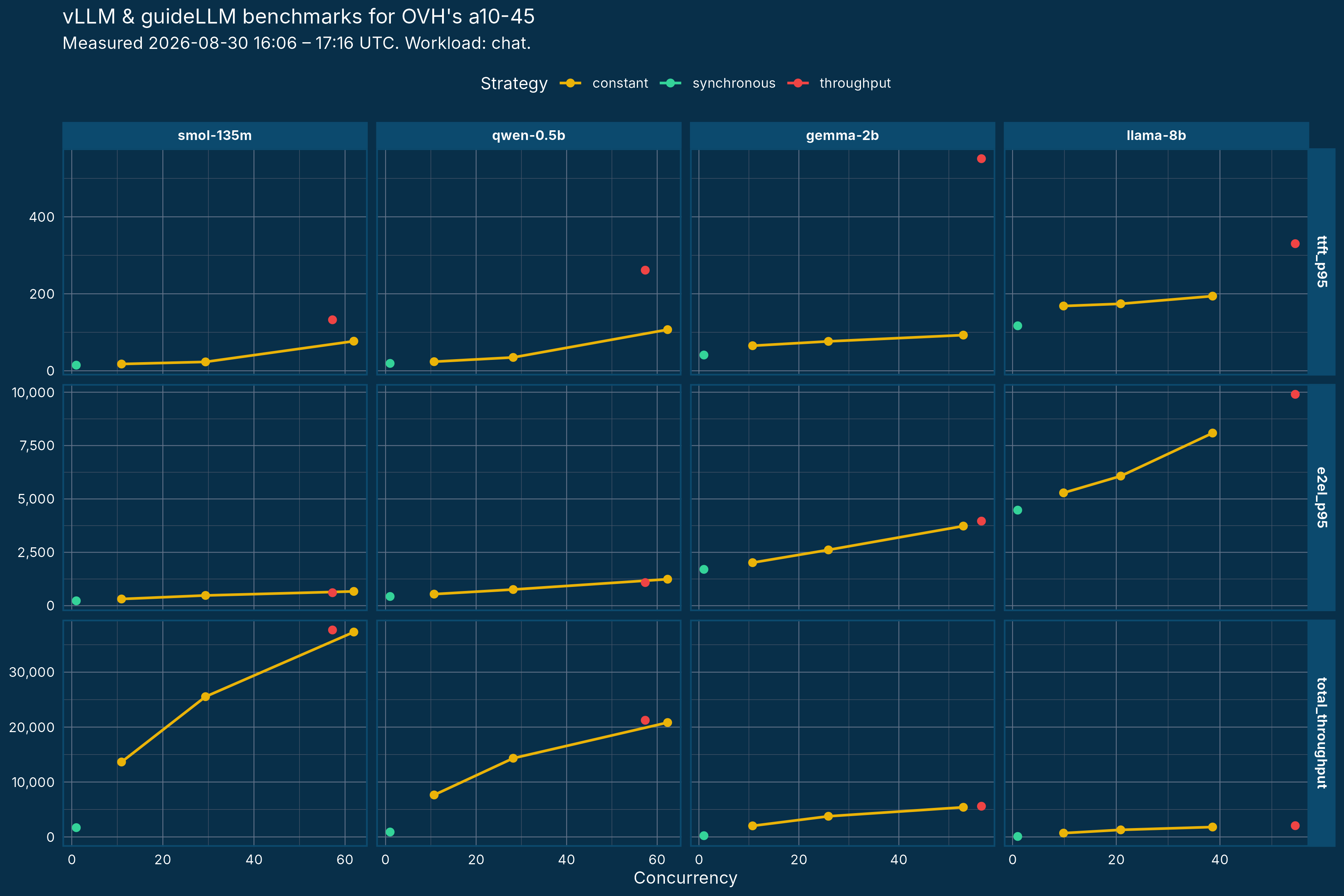

$ xdg-open vllm/status.png

Also, it’s not only througput and speed, but oftentimes you want to pick a server based on other requirements, such as latency. Maybe you need to keep the Time to first token (TTFT) below a given treshold, or similar.

To help with that, we are taking the LLM benchmarks to the next level, by using vLLM and guideLLM to run multi-concurrent workloads and measure a bunch of related metrics – stay tuned.

sqlite> SELECT * FROM scores ORDER BY price;

And just to highlight a few other workloads, as although today everyone is talking about LLMs and AI, we still have databases, websites and other important workloads ..

So let me show one of our recent projects, that is evluating PostgreSQL performance on various servers. TODO

Source: sparecores.com/servers

$ cat benchmarks/NA.md

Although we try hard, unforunately, we don’t have a full coverage of all benchmarks across all vendors and instances.

Source: sparecores.com/navigator/benchmark-coverage

$ cat benchmarks/NA.md

TODO

$ cat benchmarks/NA.md

TODO …

And the last disclaimer: (next)

Missing data, e.g. due to:

• benchmarking failed (e.g. segfaulted)
• we don’t have money to start an instance
• we don’t have quota to start an instance
• the vendor doesn’t have capacity to start an instance
• pulumi reported that the instance creation failed, but it silently ran for 3 days doing nothing and consumed 1000s of dollars

$ pip show navigator | grep -i license

🤓 100% open-source! 🤐 BUT …

$ pip show navigator | grep -i license

🤓 100% open-source! 🤐 BUT …

In this case, we are happy to be your friend .. and help out!

$ pip show navigator | grep -i budget

Thank you!

Slides: sparecores.com/talks
